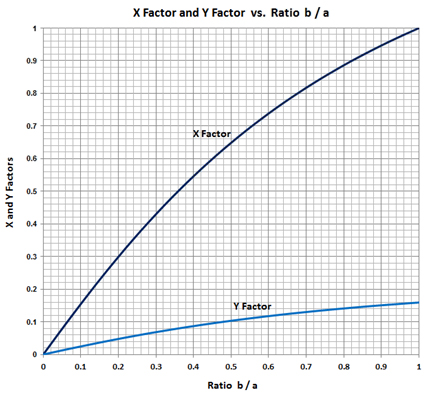

shape factor curves

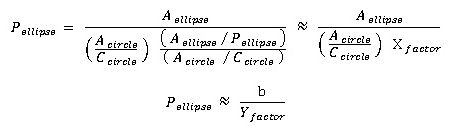

Perimeter of an Ellipse - GRAN Method

perimeter of an ellipse

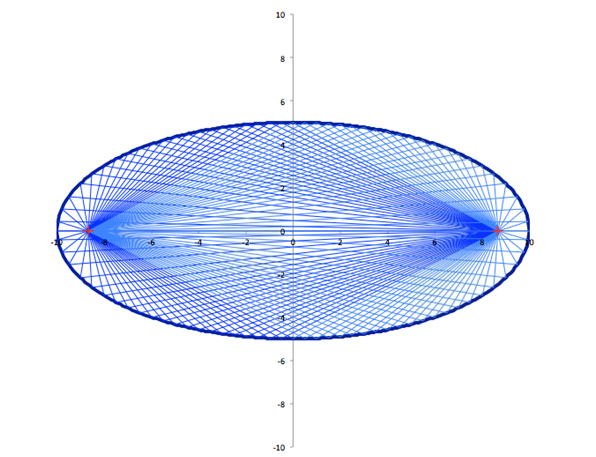

Ellipse Perimeter

ellipse perimeter

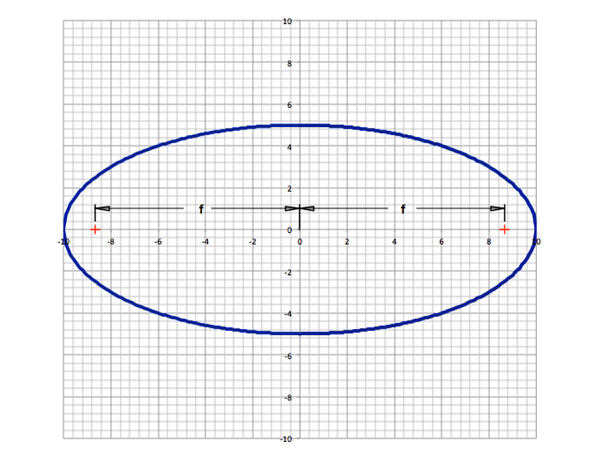

Example: Semi-Major Axis, a = 10 inch Semi-Minor Axis, b = 5 inch

factors

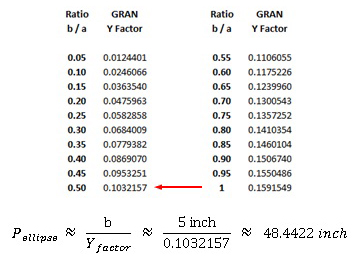

  GRAN Function

Third Order Polynomial

third order polynomial

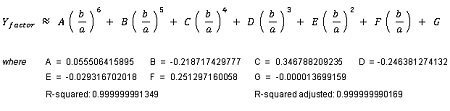

Sixth Order Polynomial

sixth order polynomial

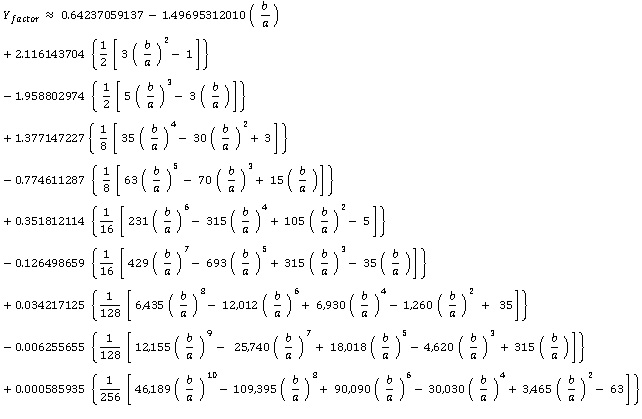

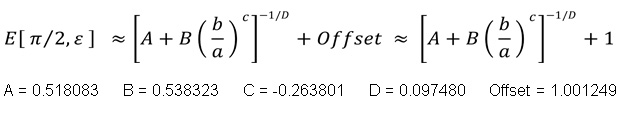

Legendre Polynomial – Tenth Degree

legendre polynomial

R-squared: 0.999999999998       R-squared adjusted: 0.999999999997

Thanks to http://zunzun.com/


Calculator

Ellipse_Perimeter_GRAN_Method.xlsx

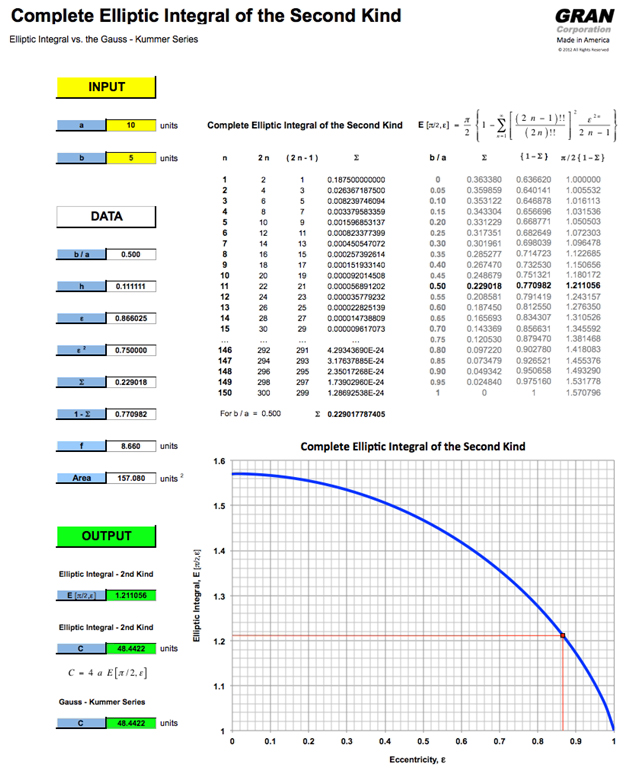

Complete Elliptic Integral of the Second Kind

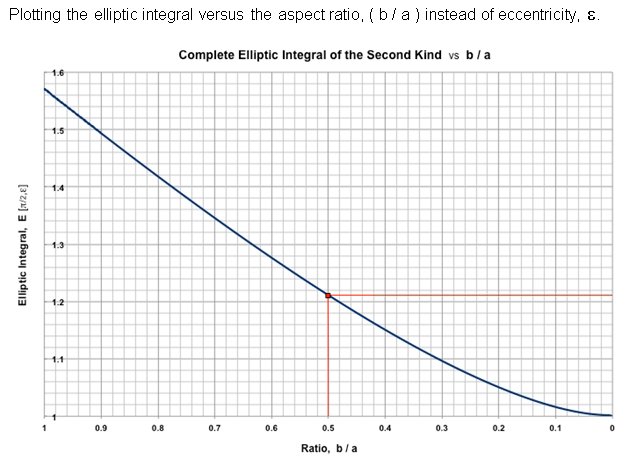

Complete Elliptic Integral of the Second Kind

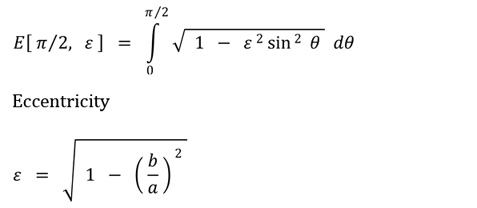

Perimeter (Circumference) of an Ellipse

Perimeter (Circumference) of an Ellipse

Screen Capture Video

Complete_Elliptic_Integral_of_the_2nd_Kind.avi

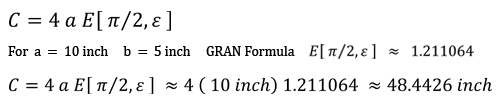

GRAN Formula

GRAN Formula

Bleasdale - Nelder Power Curve

Bleasdale - Nelder Power Curve

Perimeter (Circumference) of an Ellipse

Perimeter (Circumference) of an Ellipse
